EU-165F3
Premium Sound from Northern Europe
•Dome tweeter cone effectively decreases distortion.
•Patented design of tweeter phase cone provides precise sound directivity.
•CNC precision basket ensures extremely-low level of distrotion.
•The 6-layer composite paper cone is water-proof, humidity-proof and high temperature resistance， which also provides high •resolution and excellent transient response.
•Patented symmetric driving magnet has great control of its eddy current.
•Kapton voice coin, featured by high temperature resistance, ensures low distortion.

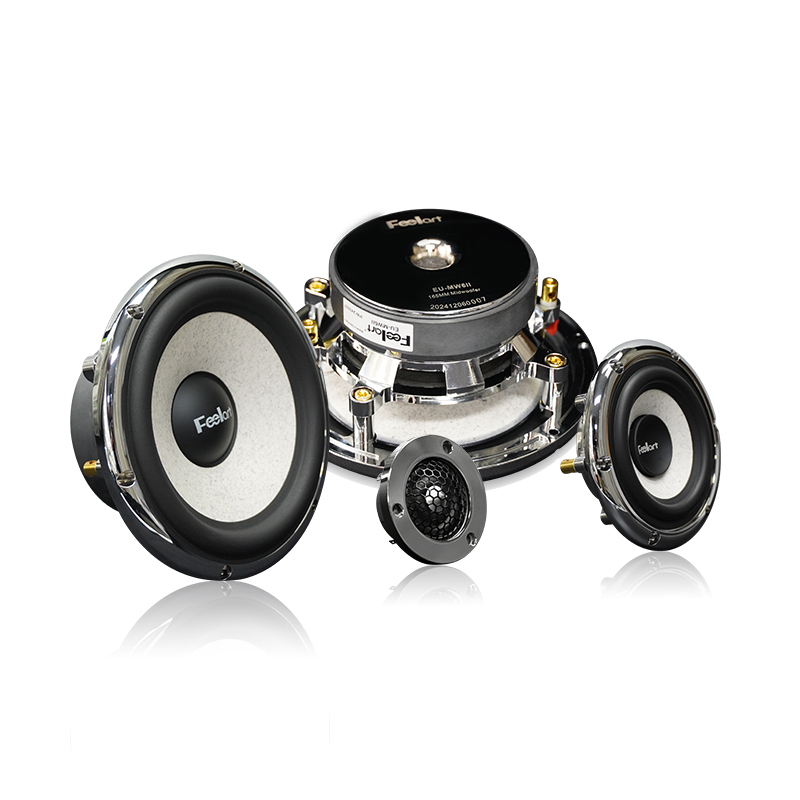

Series Premium 6.5 inch 3-way Speaker Component
Rated Impedance 4 Ohms
Rated Power 100W
Sensibility 90DB
Frequency Response 46Hz-30000Hz
Magnet Top level neodymium magnet system
Tweeter EU-T1II
29mm Dome tweeter, patented phase cone, patented symmetric driving magnet
Midrange EU-MD3II
90mm 6-layer composite paper cone, low-loss linear suspend，CNC precision basket, patented symmetric driving magnet
Midbass EU-MW6II
165mm 6-layer composite paper cone, low-loss linear suspend，CNC precision basket, patented symmetric driving magnet
External Diameter： Tweeter 29mm（1.15inch）/Midrange 90mm（3inch）/ Midbass 165mm（6.5inch）
EU-T1II EU-MW6II EU-MW611
Dimenson mm 29 90 165
Loop 1 1 1
Frequency Response Hz 625-30000 106-8000 46-4000
Sensibility dB 88 90 90
Impedance Ohm 4 4 4
Rated Power W 50 50 70
Resonant Frequency Hz 625 106 46
Mechanical Quality Factor QMS 5.73 7.52 7.43
Electric Quality Factor QES 1.43 0.33 0.29
General Quality Factor QTS 1.14 0.32 0.28
Equivalent Volume VAS 0.01L 1L 147.8
