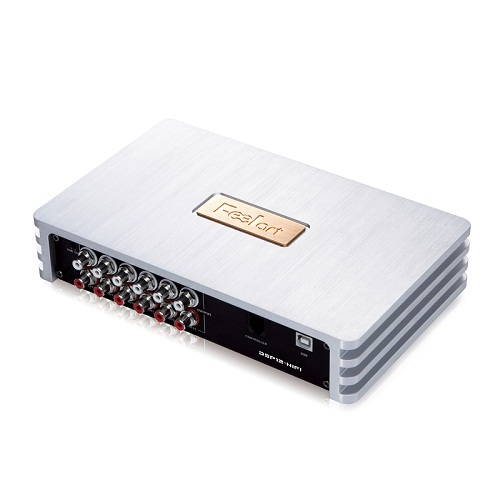

HI-FI Class DSP audio processor
▪ DSP: 4-core Hi-Res audio source hardware decoding chip, the computing power can reach 295 MHz.
▪ ADC : Hi-end Class AD digital to analog conversion chip, low distortion, better signal-to-noise ratio, larger dynamic range.
▪ DAC: Hi-end Class DA converter chip, perfect sound playback effect.
▪ EQ: “Input:10-Band;Output:31-Band”,per channel with“fine-adjust”of each EQ band,time alignment in 0.28"/7 mm steps,various filter characteristics with 6 to 48dB slope,phase control,etc.
Technical Data
Inputs:12 x Highlevel/6 x RCA/1 x Optical fiber/1 x coaxial digital/1 x Bluetooth
Outputs:12 x RCA
Frequency response:20-20kHz
EQ (Per channel):Input:10-Band；Output:31-Band
DSP resolution:295 MHz/192 KHz/64 Bit
Signal converters:A/D:AKM5384(216KHz/24Bit); D/A:PCM4104(216KHz/24Bit)
Signal-to-noise ratio:110dB(digital input);100dB(analog input)
Distortion(THD+N):≤0.005%
Power supply:9-16 V
Dimensions(L x W x H):246 x 151 x 48 mm
